Troubleshooting DHCP Configuration Issues in Enterprise IT Infrastructure: A Step-by-Step Guide

In my experience managing large-scale enterprise networks, DHCP misconfigurations can bring parts of your infrastructure to a standstill. Whether it’s a Windows Server DHCP role, a Linux-based dhcpd, or a network appliance, the key to resolving issues quickly lies in methodical diagnosis and knowing where the hidden pitfalls lie.

---

1. Understand the DHCP Workflow

Before troubleshooting, it’s important to recall how DHCP works:

1. Discover – The client broadcasts a request for an IP.
2. Offer – The DHCP server responds with an available IP and options.
3. Request – The client asks to lease the offered IP.
4. Acknowledge – The server confirms and the client configures itself.

If any stage is interrupted, clients will fail to get an IP.

---

2. Common Symptoms of DHCP Issues

• Clients fail to obtain an IP address and fall back to APIPA (169.254.x.x)
• Lease times are unusually short or long without intended configuration
• IP conflicts reported in logs
• Specific VLANs or subnets not receiving addresses

---

3. Step-by-Step Troubleshooting Process

Step 1: Verify Server Reachability

A common pitfall I’ve seen is assuming DHCP failure is purely a configuration issue. Often, it’s simply a Layer 2/3 reachability problem.

Test network connectivity to DHCP server

ping 192.168.2.2

If unreachable, trace the network path and check VLAN trunking and routing.

---

Step 2: Check DHCP Service Status

On Windows Server:
powershell
Get-Service -Name DHCPServer
Restart-Service -Name DHCPServer

On Linux:
bash
systemctl status isc-dhcp-server
systemctl restart isc-dhcp-server
Pro-tip: Always check logs immediately after restart to catch syntax or binding errors.

---

Step 3: Validate Scope Configuration

In large environments, scopes often overlap or are misaligned with VLANs.

Windows Server Example:
– Open DHCP Management Console
– Verify Start IP, End IP, and Subnet Mask
– Ensure Exclusion Ranges are set correctly to avoid conflicts with static IPs

Linux Example (/etc/dhcp/dhcpd.conf):
conf
subnet 192.168.1.0 netmask 255.255.255.0 {
range 192.168.1.100 192.168.1.200;
option routers 192.168.1.1;
option domain-name-servers 192.168.1.10, 192.168.1.11;
}
Pro-tip: I’ve seen admins forget to restart the service after modifying configs—always restart and verify syntax with dhcpd -t.

---

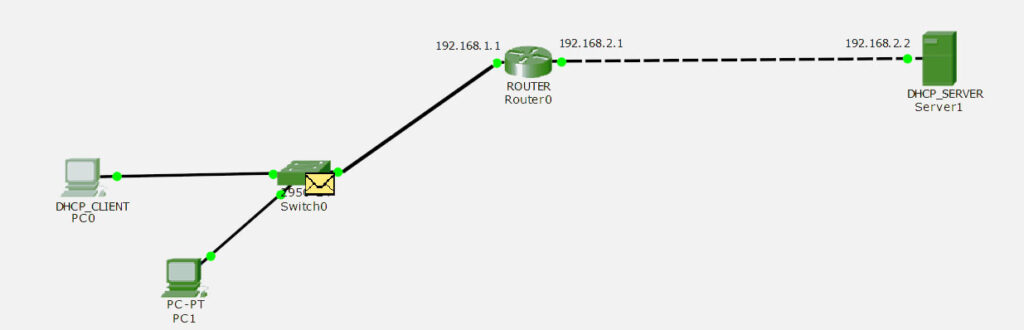

Step 4: Confirm Relay Agent Configuration

In multi-VLAN environments, DHCP relay agents (IP Helper addresses) must be correctly configured on routers/switches.

Cisco IOS example:
bash
interface Vlan20
ip address 192.168.1.1 255.255.255.0
ip helper-address 192.168.2.2
A common pitfall: forgetting to add helper addresses for all DHCP servers in failover configurations.

---

Step 5: Check Lease Availability

Insufficient available leases can silently break DHCP.

Windows PowerShell:
powershell
Get-DhcpServerv4ScopeStatistics -ScopeId 192.168.1.0

Linux:
bash
grep "No free leases" /var/log/syslog
If leases are exhausted, expand the range or reclaim stale leases.

---

Step 6: Review Firewall and ACL Rules

DHCP uses UDP ports 67 (server) and 68 (client). Ensure these are allowed across all required paths.

On Linux:
bash
iptables -A INPUT -p udp --dport 67:68 -j ACCEPT

---

Step 7: Inspect Logs for Detailed Errors

Windows Event Viewer:
– Path: Applications and Services Logs → Microsoft → Windows → DHCP-Server
– Look for Event IDs like 1046 (no bindings) or 1059 (database errors)

Linux:
bash
tail -f /var/log/syslog | grep dhcp
Pro-tip: When troubleshooting intermittent failures, leave logging running during peak usage to catch transient issues.

---

4. Advanced Troubleshooting Scenarios

DHCP Failover Issues

If you use DHCP failover, mismatched configurations can cause lease sync failures. Always check:
– Partner server connectivity
– Replication status (Get-DhcpServerv4Failover in Windows)
– Time synchronization (critical for lease expiration consistency)

---

VLAN-Specific Failures

In one large deployment I handled, only a single VLAN was failing DHCP. The culprit? An incorrectly configured trunk port that dropped broadcasts. Always verify:
– Switch port VLAN membership
– Spanning-tree behavior (DHCP can fail during STP recalculation)

---

5. Preventive Best Practices

• Document all scopes and VLAN mappings to avoid overlap
• Enable DHCP auditing for lease tracking
• Regularly backup DHCP databases to prevent catastrophic loss
• Monitor lease utilization proactively to avoid exhaustion
• Test helper addresses after network changes before going live

---

Conclusion

Troubleshooting DHCP in enterprise IT infrastructure is all about following a logical flow—from physical connectivity and service status to scope validation and relay configurations. In my experience, 80% of issues are due to either network reachability or relay misconfiguration, and the rest are scope or lease-related. Following the above method will drastically reduce downtime and ensure clients receive IPs reliably.

By applying these steps consistently, you’ll not only fix DHCP outages faster but also build a more resilient network against future misconfigurations.
